Product description

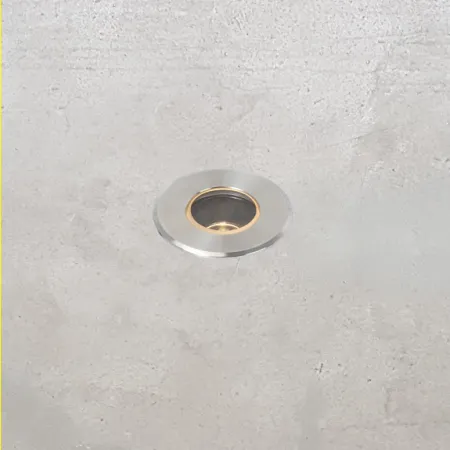

In-ground uplight fixed with optional anti-glare shield. 24DC dimmable, IP rated.

Smallest dimensions, discreet with medium or narrow beam. Also great for niches and step washing.

For more information, please refer to Mini Allegro data sheet

Construction	Die Cast Aluminium, Stainless steel 316S (marine grade)
Colour (RAL finish)	Any custom RAL, Brushed stainless steel, Plated versions
Light source	Luminus CXM-4 3W DC24V
Colour temp.	2700K, 3000K
Macadam	<3
Beam angle	15 deg, 36 deg
Controls	Phase, DALI, Casambi (blue-tooth control of each fixture), 0-10V
Dimensions (mm)	40 × 38
Cut out Dimension (mm)	35 mm (45mm with recessing housing)

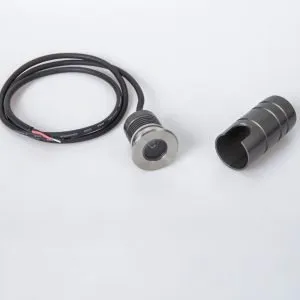

Optional accessories	Fixing tube, Anti-glare ‘half-shield', Conversion spring for use as niche-light
Special Notes	Optional anti-glare ‘half-shield., Optional conversion spring for use as niche-light., Optional fixing ‘tube’ available.
